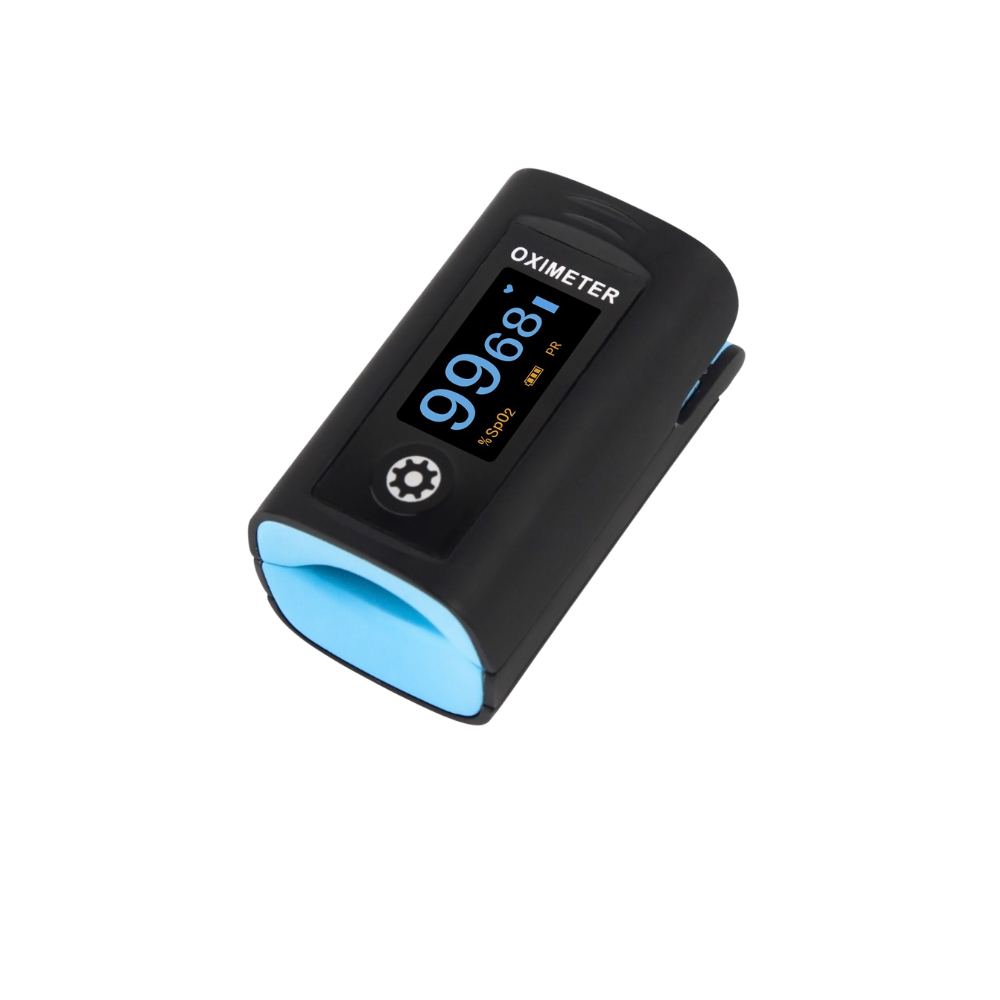

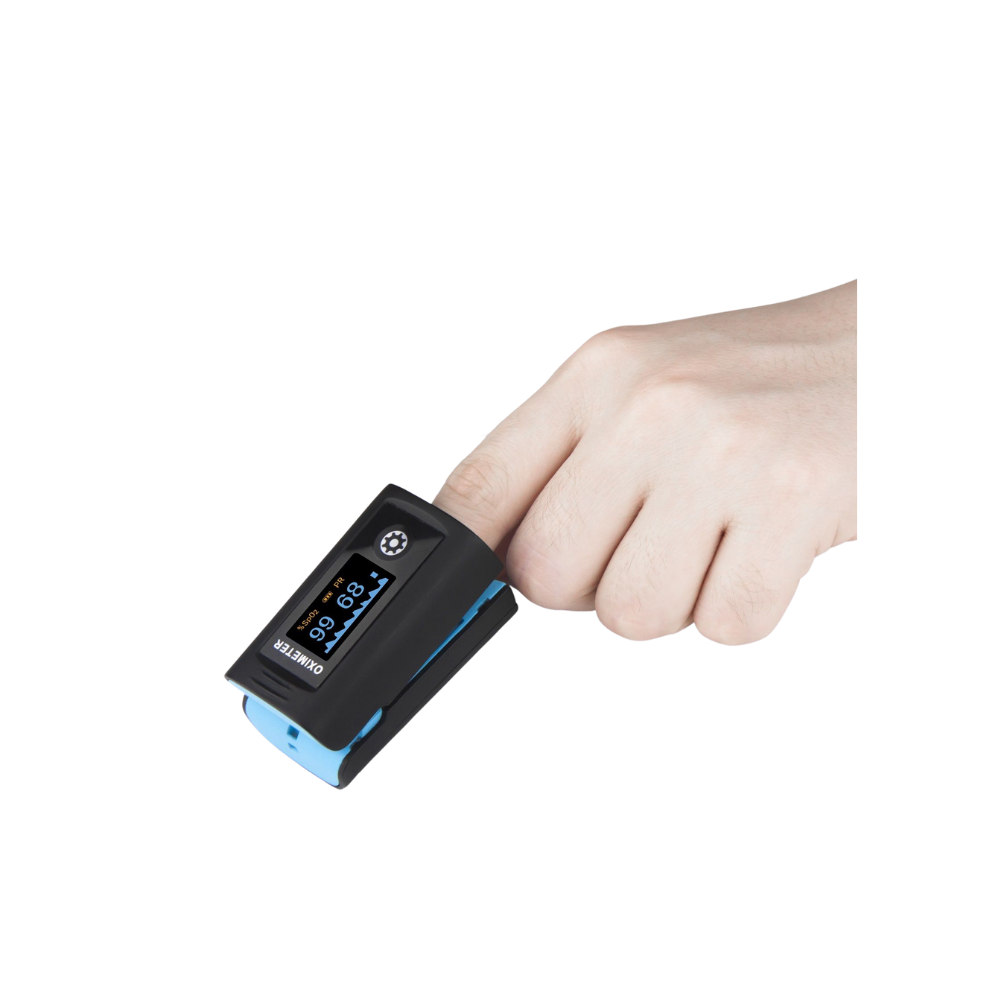

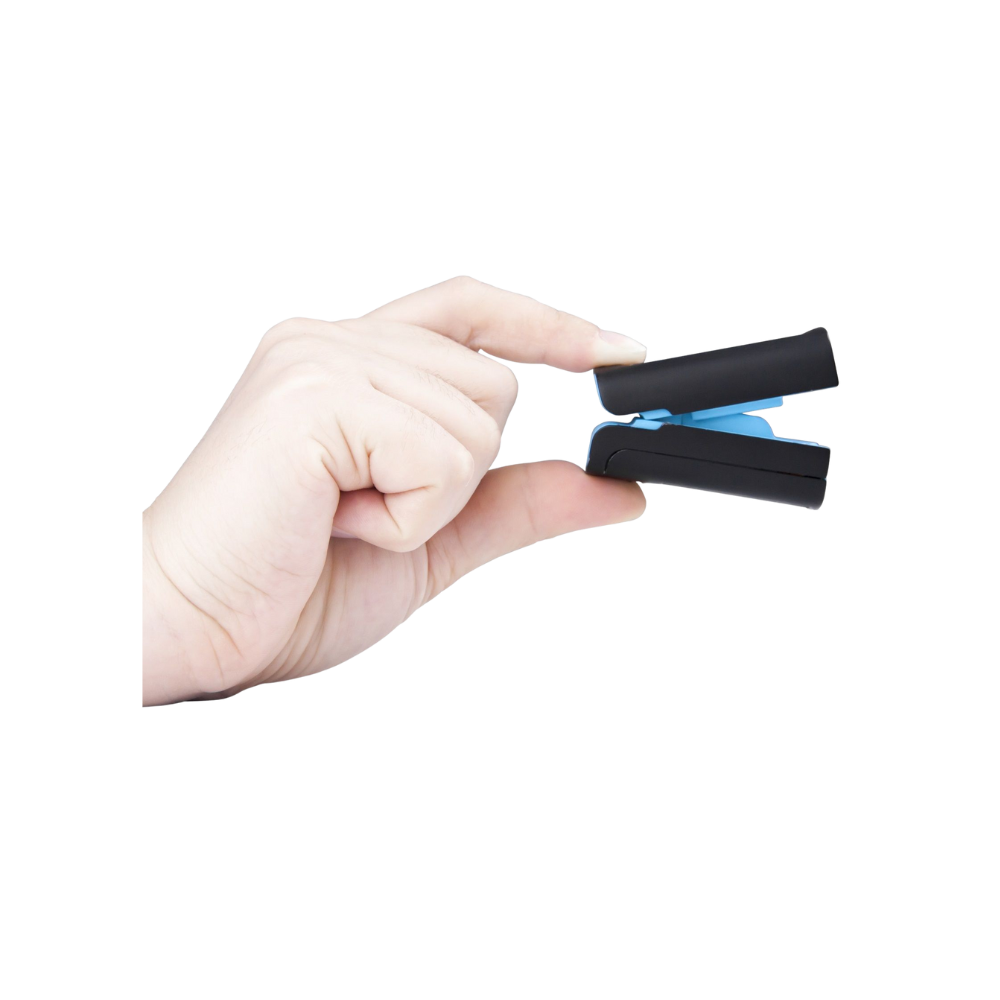

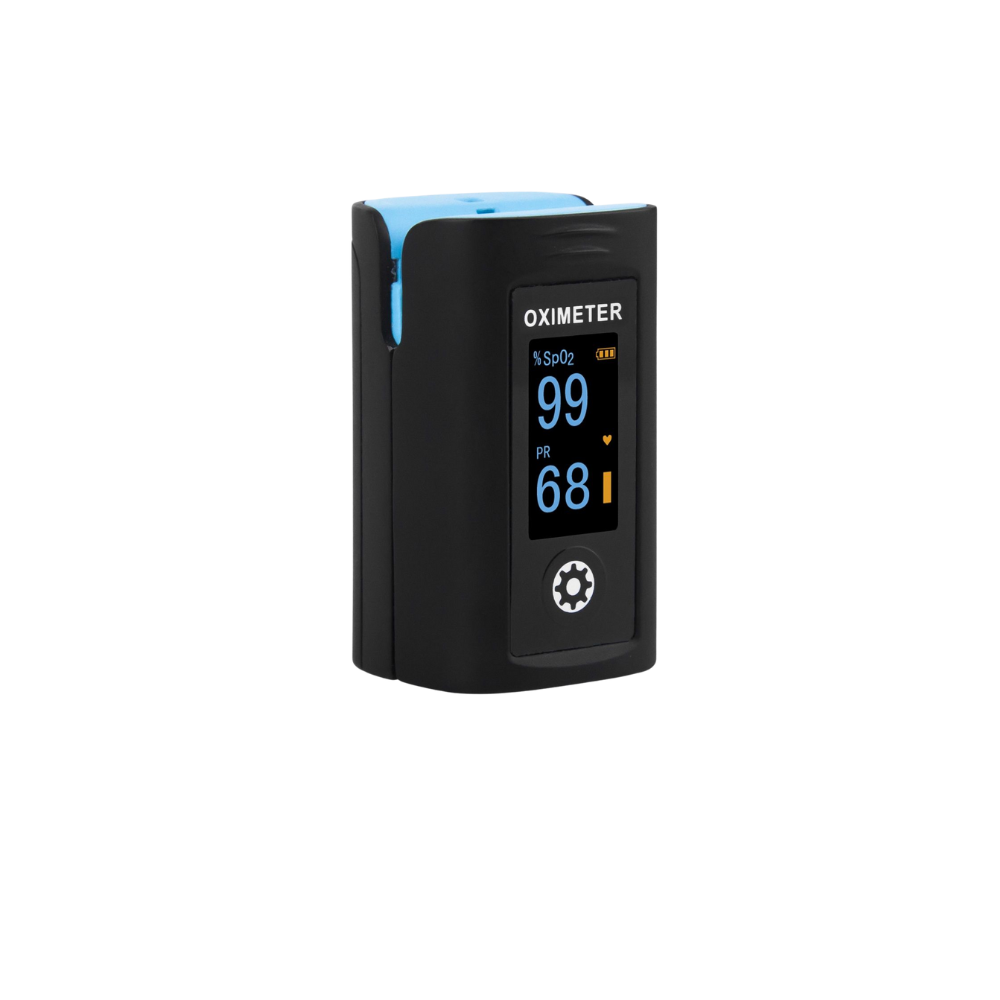

A small pulse oximeter intended for measuring the pulse oxygen saturation, pulse rate and perfusion index through a users finger. Suitable for monitoring of adult & pediatric patients in medical clinics, hospitals and at home.

Pulse Oximeter Features:

• Special splash proof and drop resistant design
• OLED display of SpO2, PR, PI, pulse bar & waveform
• Spot check and continuous pulse oximeter measurement modes
• Pulse rate analysis for spot check measurement
• Up to 12 groups SpO2 data storage
• Audible & visual alarm with low battery indication
• Automatic power on/off
• Four direction display
• Artefact removal & anti motion
• Accurate & sensitive

Pulse Oximeter Specification:

Spo2

• Transducer: Dual-wavelength LED sensor
• Measuring range: 35-100%
• Measuring accuracy: ≤ 2% range from 70-100%

Pulse Rate

• Measuring range: 30-240bpm
• Measuring accuracy: ±2bpm or ±2% (whichever is the greater)

Perfusion Index

• Display range: 0-20%

Default Alarm Limit

• SpO2 low limit: 90%
• Pulse rate high limit: 120bpm
• Pulse rate low limit: 50bpm

Measuring Mode

• 30 seconds spot check mode
• Continuous mode

Dimensions, Weight & Power

• Dimensions: 56x34x30mm (L x W x H)
• Weight: 52g
• Power: 2 x AAA alkaline battery
